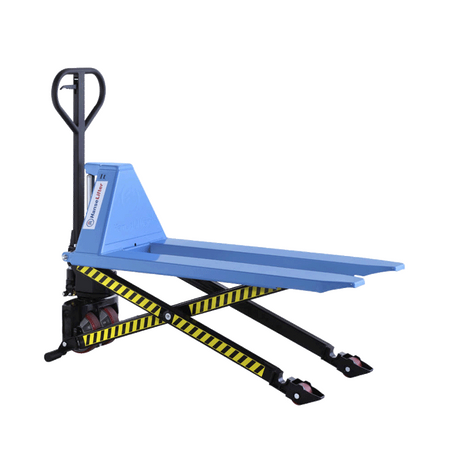

JF-PU scissor lift pallet truck
Manual scissor lift pallet trucks with 800 mm lifting height
- Load capacity: 1000 kg
- Max. lifting height: 800 mm
- Quick lift function
- Rubberised tiller handle
- Hydraulic pump
Product description
JF-PU scissor lift pallet truck - the entry-level model
The hydraulic JF-PU scissor lift pallet truck can move pallets and be used as a workbench from a lifting height of 200 mm, as the support bolts are extended. To reach the maximum lifting height of 800 mm, approx. 20 lift strokes are required.
Ergonomics in the workplace
By lifting the pallets, you can adjust the work area to a height that is comfortable for you, e.g. when storing or removing material or equipping machines. All models have a load capacity of 1.0 t and a lifting height up to 800 mm. Up to a lifting height of 200 mm, all models are fully manoeuvrable and can be used like pallet trucks as a result.
Quick lift function
The JF-PU scissor lift pallet truck has a quick lift function, which makes it possible to lift pallets up to 250 kg to a manoeuvring height of 200 mm with just a few lift strokes. This is made possible by the three-part piston. With all devices, the lever at the tiller handle is used for continuous lowering.
Features and technical data
- Feature: With quick lift function for pallets up to 250 kg
- Load capacity: 1000 kg
- Max. lifting height: 800 mm
- Load centre distance: 500 mm
- Fork outer distance: 520 mm
- Manoeuvrable up to a lifting height of 200 mm
- Rubberised tiller handle
- Hydraulic pump with 3-stage telescopic piston
- Controlled lowering at the hand lever
- OPTIONAL: With food grade H1 oil
| Model | JF-PU |
|---|---|
| Features | With quick lift |
| Load capacity (kg) | 1.000 |
| Drive | Manual |
| Lifting range (mm) | 85 - 810 |
| Lift (mm) | 725 |
| Lift per tiller stroke (mm) | ca. 15 |
| Free lift | No |
| Operation | Manual |
| Tyres | Polyurethane |
| Fork dimensions (LxWxH, mm) | 1.150/160/50 |
| Overall width (mm) | 520 |
| Overall length (mm) | 1.510 |
| Fork outer distance (mm) | 520 |
| Turning radius (mm) | 1.360 |
| Lowering speed | adjustable |
| Truck weight (kg) | 108 |
| Article number | GE0023526 |
