JF-NR scissor lift pallet truck

Designed for cleanrooms

  • Load capacity: 1000 kg
  • Manoeuvrable up to a lifting height 200 mm
  • Max. lifting height: 800 mm/li>
  • Made of V2A stainless steel
  • Fork outer distance: 540 mm

Product description

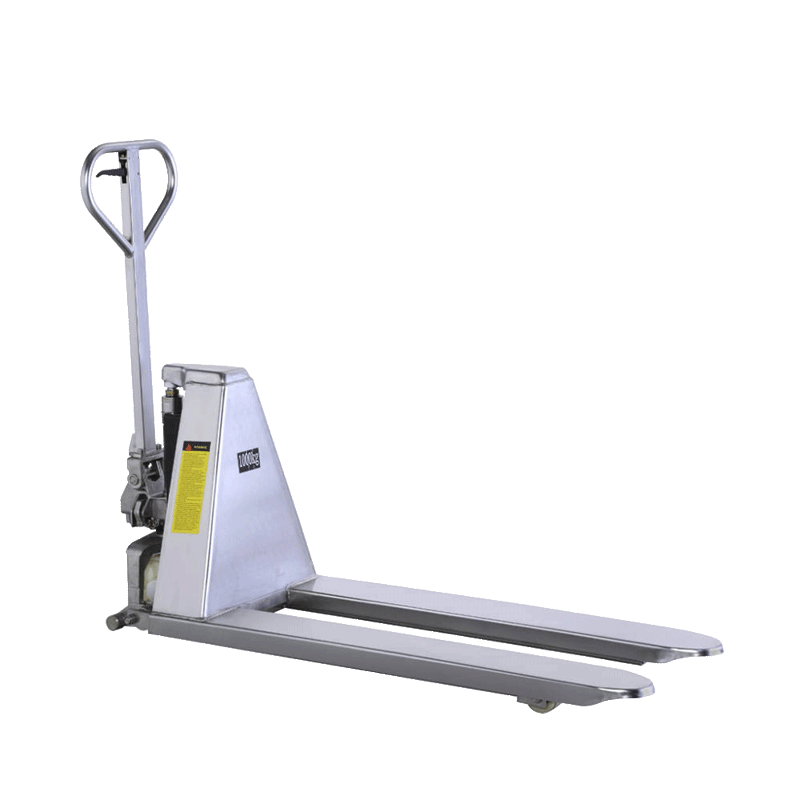

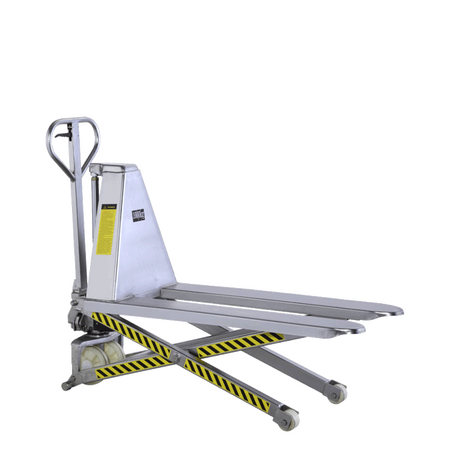

JF-NR scissor lift pallet truck made of V2A stainless steel

The JF-NR scissor lift pallet truck by HanseLifter is suitable for weather-independent use outdoors, in cleanrooms or where there is chemical exposure. The chassis, tiller, pump housing, push bars and bearings of the JF-NR are nearly entirely made of V2A stainless steel. In contrast to galvanised steel, stainless steel is permanent and cannot rust under normal conditions. This is why the JF-NR scissor lift pallet truck is also ideal for the food industry with its stringent hygiene requirements.
Pallets up to 1000 kg can be raised to a comfortable working height and loaded and unloaded. The fork length of 1150 mm corresponds to the standard dimensions. Lifting takes place using the hand tiller.

Roller equipment

Steering wheels and fork rollers are made of nylon. These rollers run very smoothly and have a hard, abrasion-resistant surface. They are not as quiet, but they are wear-resistant and protected against chemical exposure

Special construction for special requirements

Have your HanseLifter materials handling device converted based on your own individual requirements. Our Special Construction Department for custom-built devices will assist you so you can quickly use your customised device in your warehouse. Simply call us or use our free callback service to make an appointment for a consultation. We look forward to your challenge!

Is the JF-NR scissor lift pallet truck not the right materials handling device for you?

Our shop offers much more than just scissor lift pallet trucks made of V2A stainless steel. The HanseLifter NR pallet truck with a load capacity of 2000 kg is also made of V2 steel. A lower-cost alternative to stainless steel pallet trucks would be the galvanised BF-Z pallet truck.

Features and technical data

Features
  • For cleanrooms and chemical exposure
  • Manual lifting - moving
  • Load capacity: 1000 kg
  • Max. lifting height: 800 mm
  • Load centre distance: 600 mm
  • Fork outer distance: 540 mm
  • Manoeuvrable up to a lifting height 200 mm
  • Made of V2A stainless steel
  • Ergonomic plastic handle
  • Durable tandem nylon rollers and steering wheels
  • Hydraulic pump with 3-stage telescopic piston
Technical data
Model JF-NR
Features Stainless steel scissor lift pallet truck
Load capacity (kg) 1.000
Drive Manuel
Lifting range (mm) 90 - 800
Lift (mm) 710
Lift per tiller stroke ca. 20
Free lift no
Operation Manual
Tyres Nylon
Fork dimensions (LxWxH, mm) 1.150/160/50
Overall width (mm) 545
Overall length (mm) 1.600
Fork outer distance (mm) 540
Turning radius (mm) 1.440
Lowering speed (mm/s) Controllable
Truck weight (kg) 146
Article number GE0023525
