HTF-U flat electric scissor lift table
With U-profile for direct pallet pick-up
- Load capacity: 1000 kg
- Lifting range: 80-840 mm
- Supply cable for control panel: 2800 mm
- Integrated charger with automatic shutdown
- Seamless hydraulic height adjustmentg

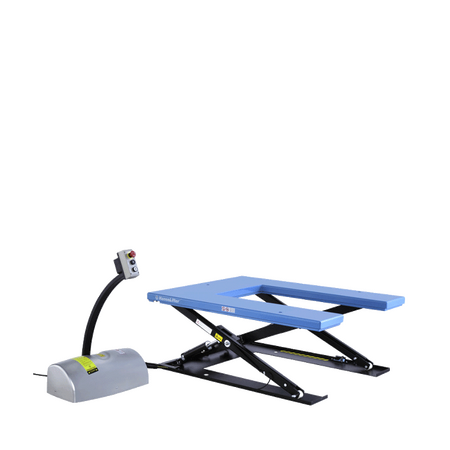

HTF-U flat electric scissor lift table
Thanks to its special U-profile design, the HTF-U can be loaded and unloaded directly with a pallet truck. It is mostly used in industrial production on assembly lines or other production lines. The HTF-U flat electric scissor lift table lifts 1000 kg to a height of 840 mm. Due to its low overall height of just 80 mm, it can also be mounted directly on the floor. The control panel is free-standing and has a 2.8 m supply line.
230 V or 380 V
The HTF-U electric scissor lift table is available in two variations. On the one hand with 230 V, for commercially available sockets and on the other hand with 380 V, for heavy current sockets. The lift motor lifts with 0.75 kW. You can decide which operating voltage you require or you can get support from our helpful sales consultants.
Does the HTF-U not meet your requirements?
If you cannot find a suitable materials handling device for your operation in our range, our Special Construction Department for custom-built devices will be happy to help. Simply send us your request with the required dimensions or call us for advice. To do so, you also have the option to use our practical callback service.
Features and technical data
- Load capacity: 1000 kg
- Lifting range: 85 - 840 mm
- Lowered height: 85 mm
- Platform dimensions (lxw): 1450 x 1140 mm
- Free-standing control panel with 2.8 m supply line
- Lift motor: 0.75 kW
- Strong scissor struts
- All-round platform protection
- Mains voltage depending on model: 230/50 or 380/16 V/A
- Pick-up of pallets via ramp
- Seamless hydraulic height adjustment
- Mechanical lock for maintenance work
| Model | HTF-U 230 V | HTF-U 380 V |
|---|---|---|
| Features | With U-profile | With U-profile |
| Load capacity (kg) | 1.000 | 1.000 |
| Lifting range (mm) | 80 - 840 | 80 - 840 |
| Lift (mm) | 840 | 840 |
| Lifting speed (mm/s) | 32 / 42 | 32 / 42 |
| Platform size (LxW, mm) | 1.450 x 1.140 | 1.450 x 1.140 |
| Overall length (mm) | 1.450 | 1.450 |
| Overall width (mm) | 1.140 | 1.140 |
| Lift motor (kW) | 0,75 | 0,75 |
| Mains voltage (V/A) | 230 / 50 | 380 / 16 |
| Supply cable for operation (mm) | 2.800 | 2.800 |
| Truck weight (kg) | 235 | 235 |
| Article number | GE0068657 | GE0023474 |
