HTF-G flat electric scissor lift table
With ramp for pallet trucks
- Load capacity: 1000 kg
- Lifting range: 85-840 mm
- Mains voltage depending on model: 230/50 or 380/16 V/A
- Pick-up of pallets via ramp
- Seamless hydraulic height adjustment
HTF-G flat electric scissor lift table

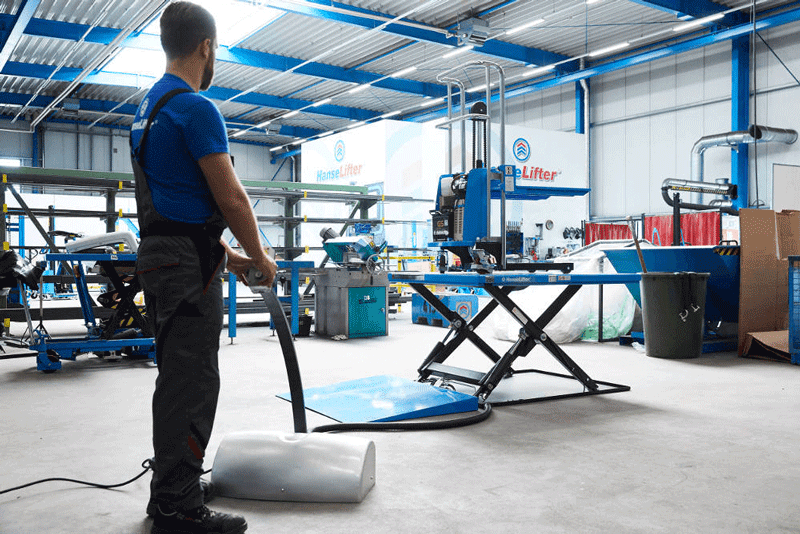

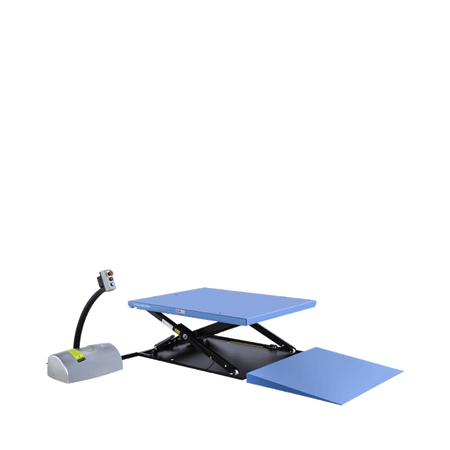

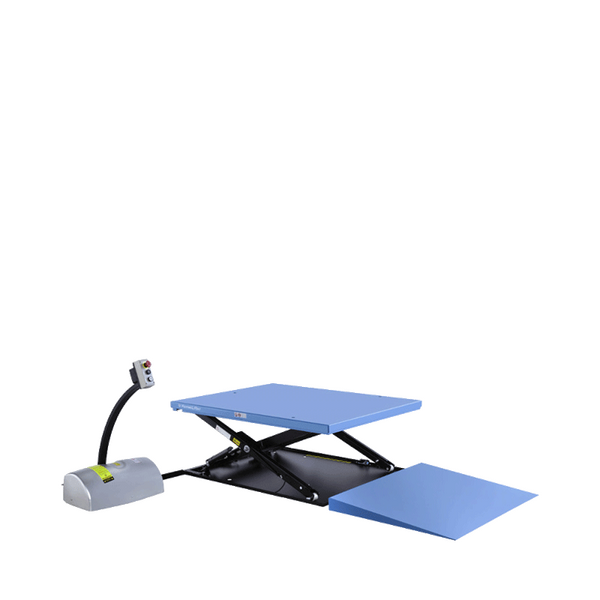

The HTF-G electric scissor lift table is suitable for picking up pallets directly. This electric scissor lift table has a continuous platform as well as a ramp, which means that a pallet can be put down directly on the lift table. The HTF-G flat electric scissor lift table lifts 1000 kg to a height of 840 mm. The control panel is free-standing and has a 2.8 m supply line. The HTF-G electric scissor lift tables can be mounted directly on the floor. With a strong electric lift motor, heavy loads are easily lifted to the optimal ergonomic working height. This flat electric scissor lift table has a table height from 80 mm, which makes it possible to easily drive a load onto it.
230 or 380 V
The HTF-G model is available with 230 V or 380 V. The models with 230 V can be easily put into operation with a normal commercially available socket, the 380 V models require a heavy current source. The lift motor lifts with 0.75 kW.
Individual special constructions
Do our electric scissor lift tables not have the right dimensions for your operations? Contact our Special Construction Department and create your own device to suit your requirements. Simply email us your request or use our practical callback service.
Features and technical data
- Load capacity: 1000 kg
- Lifting range: 85 - 840 mm
- Lowered height: 85 mm
- Platform dimensions (lxw): 1450 x 1140 mm
- Free-standing control panel with 2.8 m supply line
- Lift motor: 0.75 kW
- Strong scissor struts
- All-round platform protectio
- Mains voltage depending on model: 230/50 or 380/16 V/A
- Pick-up of pallets via ramp
- Seamless hydraulic height adjustment
- Mechanical lock for maintenance work
| Model | HTF-G 230 V | HTF-G 380 V |
|---|---|---|
| Features | With ramp | With ramp |
| Load capacity (kg) | 1.000 | 1.000 |
| Lifting range (mm) | 85 - 840 | 85 - 840 |
| Lift (mm) | 755 | 755 |
| Lifting speed (mm/s) | 34 / 42 | 34 / 42 |
| Platform size (LxW, mm) | 1.450 x 1.140 | 1.450 x 1.140 |
| Overall length (with ramp, mm) | 2.340 | 2.340 |
| Overall width (mm) | 1.140 | 1.140 |
| Lift motor (kW) | 0,75 | 0,75 |
| Operating voltage (V/A) | 230 / 50 | 380 / 16 |
| Supply cable to operating terminal (mm) | 2.800 | 2.800 |
| Truck weight (kg) | 325 | 325 |
| Article number | GE0064218 | GE0023473 |
