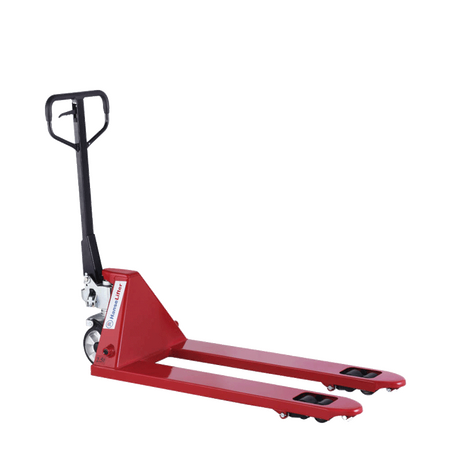

HPT-AC25 pallet truck
The low-cost model
- Load capacity: 2500 kg
- Fork length: 1150 mm
- Robust top quality for continuous use
- Fork outer distance: 540 mm
- Tandem fork rollers made of polyurethane
HPT-AC pallet truck - the low-cost model for everyone
The affordable special offer HPT-AC25 pallet truck lifts pallets up to 2500 kg and is ideally suited for continuous use. The fork length is 1150 mm at a fork outer distance of 540 mm.
Equipment
Affordable and yet high-quality. That is the special offer AC25 pallet truck. A rubberised handle ensures comfortable handling and a good grip. The reinforced tiller and the reinforced frame mean that the special offer AC25 pallet truck is ideal for continuous use. The lubricating nipples allow easy and quick maintenance. The pallet is raised by pumping the tiller and a small lever on the hand tiller is used for controlled lowering.
Rollers
The special offer AC25 pallet truck is equipped with rubber on the aluminium guide rollers. The tandem rollers of the special offer pallet truck are made of polyurethane. PU rollers are quiet and are particularly suited for uneven and wet floors.
Features and technical data
- Load capacity: 2500 kg
- Fork outer distance: 540 mm
- Fork length: 1150 mm
- Robust top quality for continuous use
- Reinforced tiller/li>
- Rubberised tiller handle
- Guide roller: Rubber on aluminium
- Tandem fork rollers made of polyurethane
- Easy picking up pallets crossways
| Model | HPT-AC25 |
|---|---|
| Load capacity (kg) | 2.500 |
| Tyres | Rubber |
| Operation | Manual |
| Lift (mm) | 115 |
| Lifting height at max. lift (mm) | 200 |
| Height, lowered (mm) | 85 |
| Overall length (mm) | 1.535 |
| Overall width (mm) | 540 |
| Load center distance (mm) | 600 |
| Load distance (mm) | 855 |
| Minimum fork height (mm) | 85 |
| Fork arm dimensions (LxWxH, mm) | 1.150/160/50 |
| Fork outer distance (mm) | 540 |
| Turning radius (mm) | 1.425 |
| Truck weight (kg) | 72 |
| Article number | GE0060867 |
