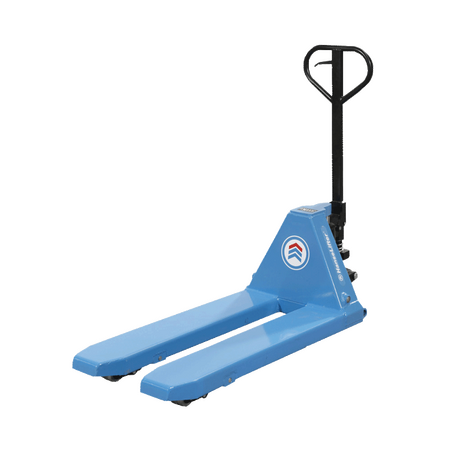

HH5t pallet truck
For the transport of heavy pallets
- Load capacity: 5000 kg
- Max. lifting height: 200 mm
- Reinforced forks and frame
- High-performance hydraulic pump
- High-quality powder coating
HH5t pallet truck - ideal for particularly heavy loads
The HH5t heavy-duty pallet truck is the first pallet truck in the HanseLifter range with a load capacity of 5000 kg, which is ideally suited for heavy loads. This makes the device suitable for transporting machines and very heavy loads. The forks and frame parts were specially reinforced, making the device suitable for continuous use. Despite its stability, good handling is ensured by the 210° steering angle.
Roller equipment
The steel rollers provide the necessary stability for the HH5t pallet truck for heavy loads. Due to its strength, the high-quality steel provides much better support to the pallet truck than the normal rollers made of PU, nylon and rubber.
Custom-made products
Does the HH5t pallet truck meet your expectations, but its dimensions are wrong? Contact our Special Construction Department and work with them to create your own customised materials handling device. Our helpful sales advisors are looking forward to your enquiry.
Features and technical data
- Load capacity: 5000 kg
- Max. lifting height: 200 mm
- Load centre distance: 600 mm
- Fork outer distance: 580 mm
- Manual lifting - moving
- Controlled, continuous lowering at the hand lever
- Pallet truck for the transport of heavy loads
- Steel guide rollers and tandem fork rollers
- Extra reinforced forks and frame parts
- High-performance hydraulic pump with pressure relief valve for a long service life
- Ideal for the transport of heavy loads or machines.
- OPTIONAL: With food grade H1 oil
| Model | HH5t |
|---|---|
| Load capacity (kg) | 5.000 |
| Tyres | Steel |
| Operation | Manual |
| Lifting height (mm) | 200 |
| Minimum fork height (mm) | 90 |
| Lift (mm) | 110 |
| Load distance (mm) | 460 |
| Overall length (mm) | 1.565 |
| Overall width (mm) | 600 |
| Fork length (mm) | 1.150 |
| Fork outer distance (mm) | 580 |
| Turning radius (mm) | 1.370 |
| Truck weight (kg) | 192 |
| Article number | GE0023208 |
