FL350 drum loader

For handling of 208 l DIN drums

  • Load capacity: 350 kg
  • Easy and energy-saving lifting using the foot pump
  • Continuous lowering at the hand lever
  • Parking brake
  • Self-closing gripping mechanism

Product description

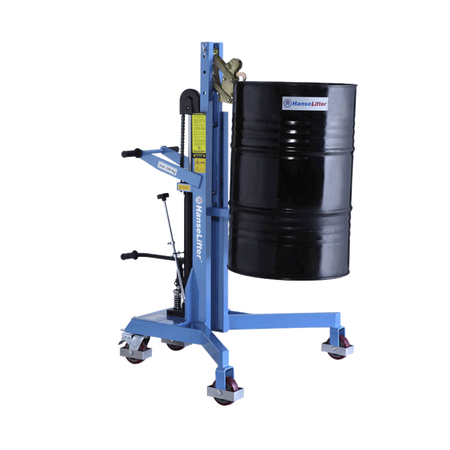

FL350 drum loader for DIN drums

The FL350 drum loader by HanseLifter makes working with 208 litre DIN drums easy and convenient. The versatile FL350 drum loader impresses with its comprehensive functionality and allows you to quickly process your drum handling tasks.

Flexible pick-up and positioning

With the angled load carriers, you can move the FL350 drum loader to pallets or collection trays at an angle, and as a result, work effectively even if there is little room to manoeuvre. Of course, the FL350 drum loader can also pick up drums directly from the floor and can be positioned over up to half of a EURO pallet. With the FL350 drum loader, drums can not only be picked up at an angle but also positioned that way.

Easy handling of drums

Your drums are easily lifted using a foot pump, saving you energy. They are continuously lowered using a lever on the handle. The above-mentioned drums can also be fixed in place with a self-closing gripper mechanism. The parking brake which is installed as standard prevents the drum loader from rolling away. As a result, your drum handling processes can be carried out easily and conveniently.

Roller equipment

The FL350 drum loader is equipped with high-quality polyurethane rollers. These are quiet, abrasion-resistant and have good grip, which is ideal for delicate surfaces or hard floors. This makes it easy to move even heavy drums.

Is the FL350 drum loader not the right device for you?

We offer you a wide range of high-quality materials handling technology. For optimum ways of working with drums, you will find other great drum handling products beside FL350 drum loader on our website. If you have any questions or suggestions, please call us at the above phone number or send us an email.

Features and technical data

Features
  • Feature: For 208 litre DIN drums
  • Load capacity: 350 kg
  • Easy and energy-saving lifting using the foot pump
  • Continuous lowering at the hand lever
  • Parking brake
  • Positioning over EURO pallets is possible
  • Self-closing gripping mechanism
  • High-quality polyurethane roller equipment
Technical data
Model FL350
Load capacity (k) 350
Drum types 208l DIN
Load distance (mm) 500
Tyres Polyurethan
Drum pick-up min./max. 820 - 1.415
Max. lifting height (lower drum edge, mm) 535
Overall length (mm) 1.010
Overall width (mm) 1.120
Lift per tiller stroke (mm) approx. 25
Ground clearance of wheel arms (mm) 230
Width between wheel arms (mm) 480 - 960
Turning radius (mm) 1.060
Truck weight (kg) 165
Article number GE0023082
