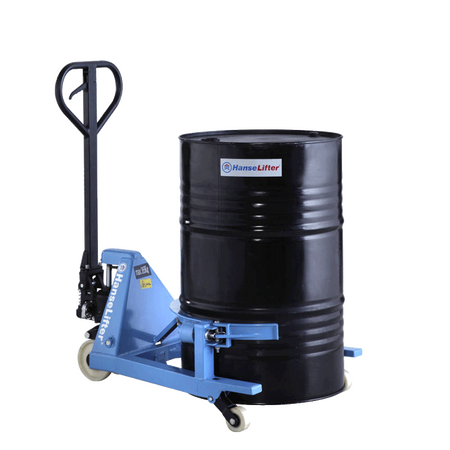

FHW drum truck

Drum handling for 208 litre DIN drums

  • Load capacity: 365 kg
  • Max. lifting height: 200 mm
  • Ideal for moving steel drums
  • Automatic gripping and lifting mechanism
  • Lifting via the hand tiller

Product description

FHW drum truck for DIN drums

Our FHW drum truck makes working with 208 litre DIN drums easy and convenient. Our versatile FHW drum truck impresses with its comprehensive functionality and allows you to quickly process your drum handling tasks.

Precise pick-up of 208 litre DIN drums

The precise equipment of the drum truck makes it possible to safely lift and transport 208 litre DIN drums. The FHW drum truck is not pallet-ready, that is to say drums can only be picked up directly from the floor, but drums which are already palletised cannot be picked up.

Easy operation of the FHR drum truck

The combined gripping and lifting mechanism clamps and lifts the 208 litre DIN drum directly from the floor with every lifting stroke of the tiller. This quickly and securely fixes the drum in place for easy transport with our drum truck. The drum does not need to be secured in any other way. When lowering the drum with the tiller lever, the clamp is loosened again. As a result, your drum handling processes can be carried out easily and conveniently

Roller equipment

The FHW drum truck is equipped with high-quality nylon rollers. They run very smoothly and have a hard, abrasion-resistant surface. They are not as quiet, but they are wear-resistant, also against chemical exposure. Suitable for heavy loads and smooth floors. This makes it easy to move even heavy drums.

Is the FHW drum truck not the right device for you?

We offer you a wide range of high-quality materials handling technology. For optimum ways of working with drums, you will find other great drum handling products beside our drum truck on our website. If you have any questions or suggestions, please call us at the above phone number or send us an email.

Features and technical data

Features
  • Feature: For handling of 208 l DIN drums
  • Load capacity: 365 kg
  • Easy lifting using the foot pump
  • Automatic gripping and lifting mechanism
  • Lifting via the hand tiller
  • Continuous lowering at the hand lever
  • High-quality powder coating
  • High-quality nylon roller equipment
  • Ideal for moving steel drums
Technical data
Model FHW
Load capacity (kg) 365
Drum types 60l and 208l DIN
Tyres Nylon
Max. lifting height (lower drum edge, mm) 85
Overall length (mm) 1.022
Overall width (mm) 722
Lift per tiller stroke (mm) ca. 11
Turning radius (mm) 1.040
Truck weight (kg) 53
Article number GE0023078
