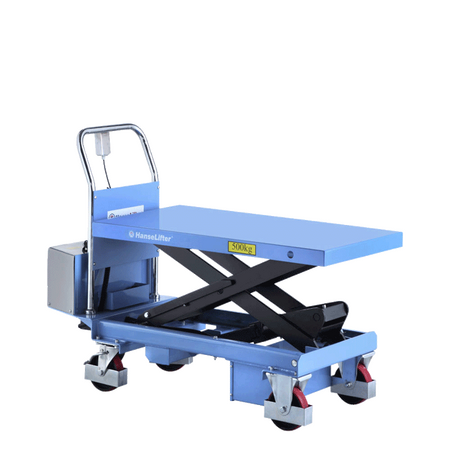

E-TF electric lift table

Electric lifting up to 1300 mm lifting height

  • Load capacity up to 500 kg
  • Max. lifting height up to 1300 mm
  • Lift motor: 0.8 kW
  • High-quality hydraulic pump
  • Including charger

Product description

The E-TF lift table with electric lift motor

Lift tables provide support at work during loading, filling or unloading. Thanks to the electric lift motor, you can conveniently lift and lower the lift table at the press of a button. This makes it easy to raise the platform to a suitable height. Both devices are equipped with an integrated charger, offering practical charging at any socket (230 V/50 Hz). The E-TF series lift tables are moved manually and have electric lift.

High-quality tyres

The E-TF lift table is equipped with high-quality polyurethane (PU) rollers as standard. They have strong grip and are abrasion-resistant. In addition, they can easily and quietly roll over small surface irregularities. Parking brakes are attached to the steering wheels, which ensure firm positioning.

Individual dimensions

Is the E-TF not the right device for you? If you cannot find what you are looking for in our range of materials handling technology, because the devices do not meet your requirements or have the wrong dimensions, our Special Construction Department will be happy to assist you. Simply email us the required dimensions or use our practical callback service to speak to one of our advisors. We look forward to every challenge!

Features & technical data

Features
  • Feature: Electric lifting and manual moving
  • Load capacities depending on model: 350 or 500 kg
  • Lifting range depending on model: 370 - 1330 mm
  • Handle height: 920 or 970 mm
  • Platform dimensions (lxw): 910 x 500 mm or 1020 x 520 mm
  • Lift motor: 0.8 kW
  • Control panel with 3000 mm supply cable
  • Parking brakes on both steering wheels
  • High-quality hydraulic pump
  • Incl. charger
  • Can be charged at any socket
  • Strong scissor struts
  • High-quality powder coating
  • Controlled, continuous lowering
  • High-quality polyurethane rollers ensure smooth running on even surfaces.
Technical data
Model E-TFD35 E-TF50
Features electric lifting electric lifting
Load capacity (kg) 350 500
Lifting range (mm) 370 - 1.330 440 - 1.015
Handle height (mm)) 920 970
Lifting speed (mm/s) 137 95
Lift motor (kW) 0,8 0,8
Battery capacity (Ah) 4 x 12/15 2 x 12/24
Tyres Polyurethane Polyurethane
Service brake Parking brake Parking brake
Truck weight (kg) 142 157
Platform size (LxW, mm) 910 x 500 1.020 x 520
Article number GE0023052 GE0023051
