E-SPA500 electric scissor lift table

Electric lifting and moving

  • Load capacity: 500 kg
  • Max. lifting height: 1000 mm
  • Lift motor 0.8 kW
  • Parking brake
  • Including integrated charger

Product description

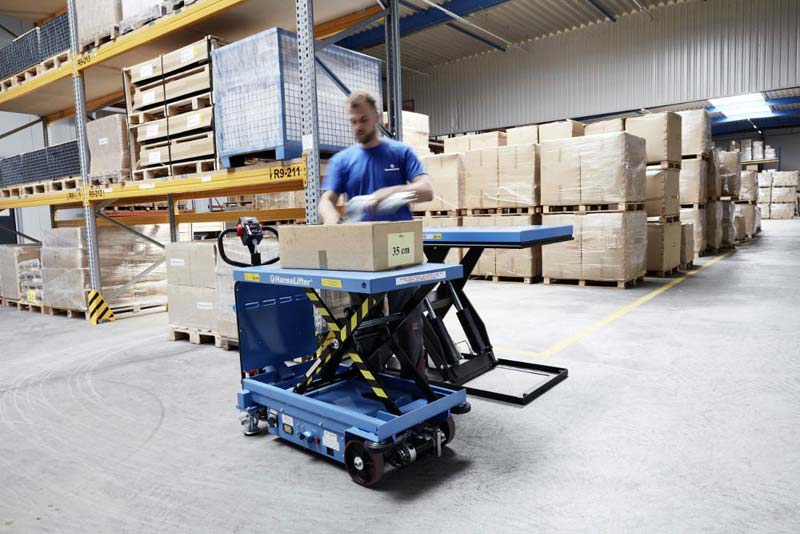

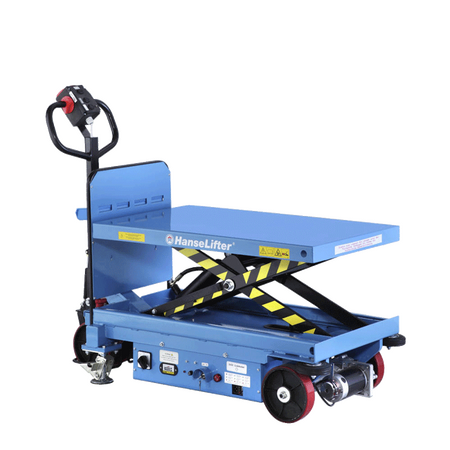

E-SPA500 electric scissor lift table

This E-SPA500 electric scissor lift table provides fully electric lifting up to 1000 mm to an ergonomic height to suit your needs and also meets any operational requirements with its powerful 500 W drive motor. This electric lift table is equipped with low-maintenance batteries, which can be charged at any socket thanks to the integrated charger. The practical storage compartments at the rear of the E-SPA500 electric scissor lift table provide space for tools or small parts. The boxes can be removed separately and are easy to clean.

Tyres and brakes

The E-SPA500 electric lift table is equipped with high-quality polyurethane rollers as standard, which ensure smooth running on even surfaces. The rollers are also abrasion-resistant and impress with their excellent grip. Small surface irregularities are not a problem and can be rolled over quietly. Parking brakes are attached to both steering wheels, which ensure particularly firm positioning of the lift table.

Is this not the right device for you?

Our range offers many scissor lift tables in a wide variety of designs. It includes a suitable device for almost every situation. But even if you cannot find a materials handling device to meet your requirements in our range, a device which is customised to your requirements can be provided by our Special Construction Department. Simply send us your request with the required dimensions or use our practical callback service.

Features & technical data

Features
  • Feature: Electric lifting and moving
  • Load capacity: 500 kg
  • Lifting range: 465 - 1000 mm
  • Handle height: 1100 mm
  • Platform dimensions (lxw): 1020 x 610 mm
  • Lift motor: 0.8 mm
  • Integrated charger: 24/8 V/Ah
  • Battery voltage: 2x 12/54 V/Ah
  • Parking brake on steering wheel
  • High-quality powder coating
  • Practical storage compartments
  • Roller equipment: Polyurethane (PU)
Technical data
Model E-SPA500
Features electric lifting and moving
Load capacity (kg) 500
Lifting range (mm) 465 - 1.000
Lift (mm) 535
Platform size (LxW, mm) 1.020 x 610
Overall length (mm) 1.500
Overall width (mm) 667
Operation Manual, pedestrian
Lifting speed (with/without load, mm/s) 35 / 105
Lift motor (kW) 0,8
Battery capacity (Ah) 2x 12/54
Tyres Polyurethane
Service brake Parking brake
Truck weight (kg) 203
Article number GE0027063
