E-NHT tilting lift table
Tilt up to 45°
- Load capacities up to 600 kg
- Max. lifting heights up to 1620 mm
- Removable control panel
- Integrated charger
- Parking brake
Product description

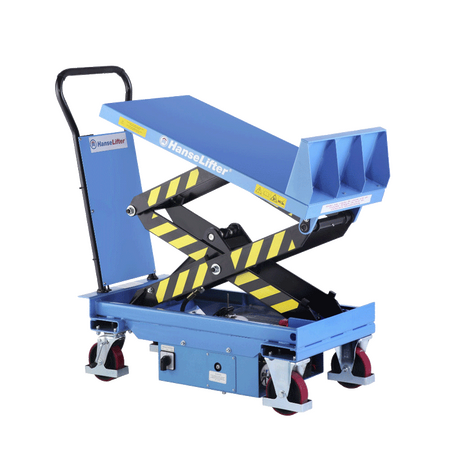

E-NHT tilting lift table
The E-NHT series tilting lift tables are particularly suitable for equipping machines in production and for order picking. The tilt function of the E-NHT means that crates and boxes can be tilted, making it easier to fill or empty them. The control panel of the tilting lift tables can be removed and is equipped with an approx. 3 m long supply cable. E-NHT series tilting lift tables allow you to work ergonomically. Simply raise the goods to a height that is good for you. Electric lifting and lowering up to 600 kg with E-NHT series tilting lift tables.
Charge at any socket
The E-NHT series tilting lift tables can be charged at any normal socket. The E-NHT has an integrated charger. The lift motor lifts with a strength of 0.8 kW, at a battery voltage of 12 V / 75 Ah.
Tyres and brakes
The E-NHT tilting lift table is equipped with rollers made from high-quality polyurethane (PU). On even surfaces, they are abrasion-resistant and ensure smooth running. The PU rollers also impress with their strong grip. The E-NHT is equipped with parking brakes on both steering wheels, which can fix the tilting lift table in place and ensure firm positioning.
Features & technical data
- Feature: Ergonomic working up to a max. 45° tilt of loading surface
- Load capacities depending on model: 300 or 600 kg
- Lifting range depending on model: 500 - 1000/1620 mm
- Table dimensions (LxW): 830 x 520 mm
- Handle height: 1180 mm
- Handle- / overall height: 1180 mm
- Removable control panel with approx. 3 m lead
- Electric lifting and lowering via control panel
- Parking brakes on both steering wheels
- High-quality powder coating
- Lift motor: 0.8 kW
- Integrated charger
- Mains voltage: 12/75 V/Ah
- Ideal for loading and unloading of crates and boxes in production and warehouses
- High-quality polyurethane rollers for smooth running on all even surfaces.
| Model | E-NHT300 | E-NHT600 |
|---|---|---|
| Load capacity (kg) | 300 | 600 |
| Lifting range (mm) | 500 - 1.000/1.620 | 500 - 1.000/1.620 |
| Platform size (LxW, mm) | 830 x 520 | 830 x 520 |
| Overall length (mm) | 1.185 | 1.185 |
| Overall width (mm) | 520 | 520 |
| Handle height (mm) | 1.180 | 1.180 |
| Tilt of loading surface max. | 45° | 45° |
| Lift speed (mm/s) | 105/158 | 105/158 |
| Lowering speed (mm/s) | 96/100 | 96/100 |
| Lift motor (kW) | 0,8 | 0,8 |
| Battery (V/Ah) | 12/75 | 12/75 |
| Tyres | Polyurethane | Polyurethane |
| Truck weight (kg) | 185 | 185 |
| Article number | GE0023006 | GE0023007 |
