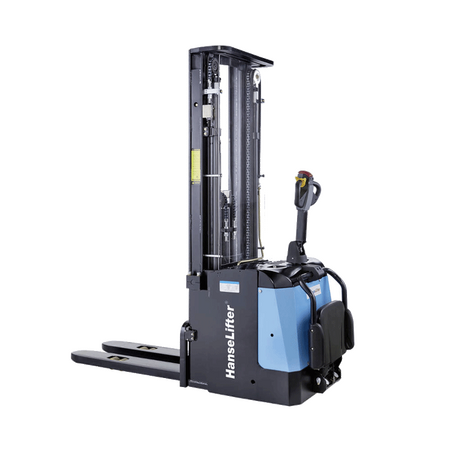

E-DHT-S20PL electric pallet stacker
Ride on device with platform and triplex mast
- Load capacity: 2000 kg
- Lifting height: 3000 - 5800 mm
- with triplex mast
- Low-maintenance gel batteries
- Side-mounted tiller
Product description
E-DHT-S20PL electric pallet stacker with triplex mast
Our new E-DHT-S20PL electric pallet stacker is ideally suited for nearly all classic shunting and stacking tasks in warehouses and operations. Thanks to its folding ride on platform, the new E-DHT-S20PL electric pallet stacker can be used as a pedestrian or ride on device and is ideally suited for transport over short and medium distances. With its electric steering, the new E-DHT-S20PL electric pallet stacker offers easy and effortless handling, providing ideal conditions for comfortable operation.
Easy battery change
With the battery change system on both sides, the batteries can be removed quickly and easily. As a result, the E-DHT-S20PL electric pallet stacker can also be used in multi-shift operation and the battery can simply be replaced as required.
Triplex mast
The E-DHT-S20PL electric pallet stacker is equipped with a triplex mast and can reach a lifting height of between 3000 and 5500 mm. The maintenance-free and powerful three-phase drive motors provide optimal performance and goods handling. High-quality components as well as a Zapi controller for ride on operation are also part of the standard equipment.
Features and technical data
- Feature: With triplex mast
- Load capacity: 2000 kg
- Lifting heights up to 5500 mm
- Clearance height: 2020 mm
- Fork outer distance: 600 mm
- Low-maintenance gel batteries
- Precision mast rollers
- Side-mounted tiller
- Agile and easy to manoeuvre
- Sensitive speed control
- Battery level display with operating hours counter
- Automatic speed reduction from 500 mm lift
- Automatic switch to stand-by when electric pallet stacker is not in use
- Driving parameters are adjustable on request
- Automatic brake against rolling away on ramps and gradients
| Model | E-DHT-S2045PL | E-DHT-S2050PL | E-DHT-S2055PL | E-DHT-S2058PL |
|---|---|---|---|---|
| Load capacity (kg) | 2.000 | 2.000 | 2.000 | 2.000 |
| Lifting height (mm) | 88 - 4.500 | 88 - 5.000 | 88 - 5.500 | 88 - 5.800 |
| Free lift (mm) | 1.590 | 1.760 | 1.910 | 2.010 |
| Mast height raised (mm) | 4.960 | 5.460 | 5.910 | 6.210 |
| Mast height lowered (mm) | 2.022 | 2.187 | 2.352 | 2.452 |
| Load distance (mm) | 693 | 693 | 693 | 693 |
| Overall length (mm) | 2.003 | 2.003 | 2.003 | 2.003 |
| Overall width (mm) | 850 | 850 | 850 | 850 |
| Fork dimensions (LxWxH, mm) | 1.150/190/60 | 1.150/190/60 | 1.150/190/60 | 1.150/190/60 |
| Fork outer distance (mm) | 570 | 570 | 570 | 570 |
| Turning radius (mm) | 1.739 / 2.009 | 1.739 / 2.099 | 1.739 / 2.099 | 1.739 / 2.099 |
| Working aisle width (pallet crossways) (mm) | 2.611 / 2.971 | 2.611 / 2.971 | 2.611 / 2.971 | 2.611 / 2.971 |
| Working aisle width (pallet lengthways) (mm) | 2.581 / 2.941 | 2.581 / 2.941 | 2.581 / 2.941 | 2.581 / 2.941 |
| Gradeability with/without load, (%) | 6 / 12 | 6 / 12 | 6 / 12 | 6 / 12 |
| Driving speed with/without load (km/h) | 4,5 / 5,0 | 4,5 / 5,0 | 4,5 / 5,0 | 4,5 / 5,0 |
| Drive motor (kW) | 1,6 | 1,6 | 1,6 | 1,6 |
| Lift motor (kW) | 3 | 3 | 3 | 3 |
| Battery voltage (Ah) | 24V/280 | 24V/280 | 24V/280 | 24V/280 |
| Charger | external | external | external | external |
| Overall weight (kg) | 1.480 | 1.515 | 1.540 | 1.560 |
| Article number | GE0073546 | GE0073547 | GE0066094 | GE0073549 |
