DSHT electric double scissor lift table
With a load capacity from 1000 to 4000 kg
- Lifting range depending on model between 305-2050 mm
- External control panel with supply cable
- Continuous hydraulic height adjustment
- Overload protection
- Can be mounted on the floor
Product description

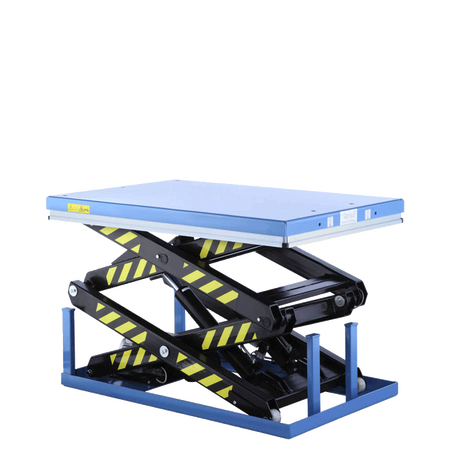

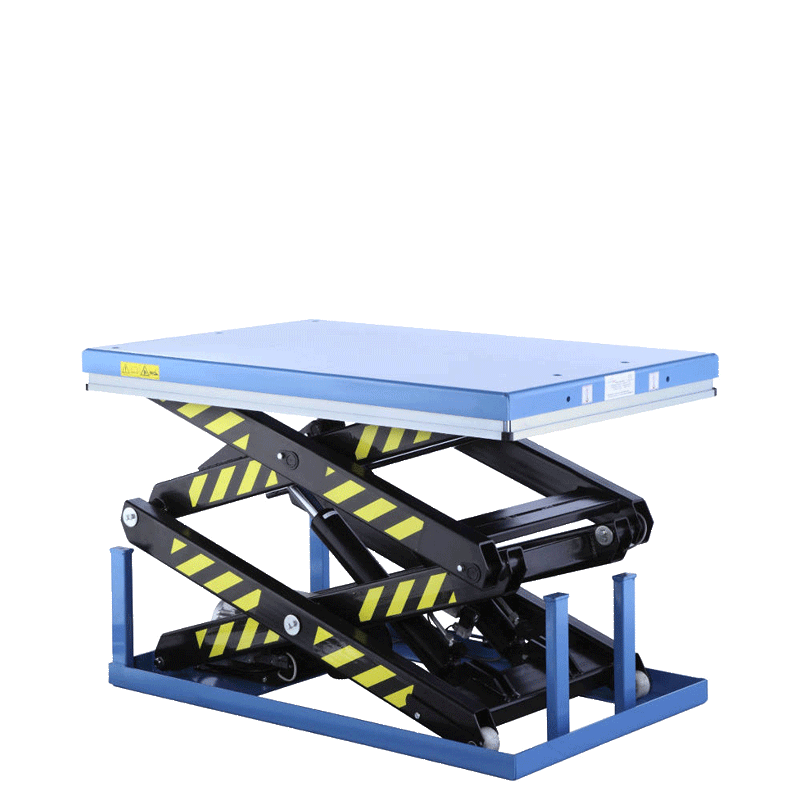

The electric double scissor lift table
Electric scissor lift tables of the DSHT series reach higher lifting heights thanks to the double scissors and electrically lift loads up to 4 t to the required level up to a maximum of 2050 mm. They can be mounted directly on the floor or sunk into it. When sunk into the floor, the DSHT electric scissor lift table is a space-saving variant. Electric scissor lift tables such as the DSHT are mainly used for loading or equipping in warehouses, freight forwarding or industrial operations. The electric double scissor lift tables of the DSHT series have a maximum table height of 2050 mm and a load capacity up to 4000 kg.
High-quality equipment
The DSHT electric scissor lift table has an external control panel with a supply cable which has a length of 1300 mm or 1700 mm, depending on the model. This makes it possible to work with the lift table from a safe distance. The DSHT is protected from accidental damages and scratches by its high-quality powder coating and an all-round protective frame. The design of the lift table is very easy-maintenance, the most important components are easily accessible. Emergency Stop and key switches are installed as standard. The lift motor lifts with 2.2 kW. Electric scissor lift table for all those who are aiming high!
Select the voltage
The DSHT electric scissor lift table is available with two different voltages. As standard, the lift table is designed for an operating voltage of 380 V. However, you can now also get a version for 230 V, making it suitable for all standard sockets. Just contact our sales staff to discuss this further!
Features and technical data
- Load capacity depending on model: 1000 - 4000 kg
- Lifting range depending on model between 305-2050 mm
- Platform dimensions differ depending on model
- Lowered height depending on model: 305, 360 or 400 mm
- External control panel with supply cable
- Lift motor: 2.2 kW
- Mains voltage: 380/16 V/Ah
- All-round protective frame
- Continuous hydraulic height adjustment
- Strong double scissor struts
- Ideal for production, warehouses and production lines
- Can be mounted on the floor/li>
- Overload protection
| Model | DSHT1t | DSHT2t | DSHT4t |
|---|---|---|---|
| Features | Double scissors | Double scissors | Double scissors |
| Load capacity (kg) | 1.000 | 2.000 | 4.000 |
| Lifting range (mm) | 305 - 1.780 | 360 - 1.780 | 400 - 2.050 |
| Lifting speed (mm/s) | 15 / 25 | 20 / 30 | 40 / 50 |
| Platform size (LxW, mm) | 1.300 x 820 | 1.300 x 850 | 1.700 x 1.200 |
| Overall length (mm) | 1.300 | 1.300 | 1.700 |
| Overall width (mm) | 820 | 850 | 1.200 |
| Lift motor (kW) | 2.2 | 2.2 | 2.2 |
| Mains voltage (V/A) | 380 / 16 | 380 / 16 | 380 / 16 |
| Supply cable for operation (mm) | 1.300 | 1.300 | 1.700 |
| Truck weight (kg) | 210 | 295 | 520 |
| Article number | GE0027554 | GE0031863 | GE0031038 |
