DB special model pallet trucks
With extra short forks
- Load capacity: up to 2500 kg
- Max. lifting height: 200 mm
- Small turning circle
- Extra short forks
- High-quality powder coating

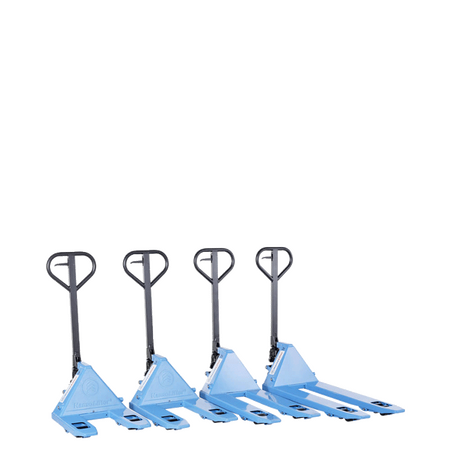

BD pallet truck with extra short forks
Special applications also call for special pallet trucks. With our DB models in special dimensions, we can provide you with a large selection of pallet trucks for these special applications. Instead of producing more expensive special constructions, the DB pallet trucks in special dimensions are supplied as standard ex-works! This means that the pallet trucks in special dimensions are immediately available and can be quickly delivered to you on-site.
Select your DB special model pallet truck
The DB pallet truck is available in different fork lengths. Select your model from a fork length of 450 mm to 1150 mm.
Equipment
A high-quality hydraulic pump guarantees that the special dimension pallet trucks have a long service life. The pallet truck also has a high-grade powder coating.
Features and technical data
Features
- Load capacity 2000 kg
- Lifting ranges up to 200 mm
- Easy maintenance
- High-quality hydraulic pump
- High-quality powder coating
Technical Data
| Model | DB450 | DB500 | DB600 | DB700 | DB800 | DB800 t |
|---|---|---|---|---|---|---|
| Load capacity (kg) | 2.000 | 2.000 | 2.000 | 2.000 | 2.000 | 2.000 |
| Tyres | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane |
| Operation | Manual | Manual | Manual | Manual | Manual | Manual |
| Lifting range (mm) | 75 - 190 | 75 - 190 | 75 - 190 | 75 - 190 | 85 - 200 | 85 - 200 |
| Lift (mm) | 115 | 115 | 115 | 115 | 115 | 115 |
| Lift per tiller stroke | ca. 15 | ca. 15 | ca. 15 | ca. 15 | ca. 13 | ca. 15 |
| Load distance (mm) | 160 | 205 | 330 | 300 | 520 | 520 |
| Overall length (mm) | 825 | 900 | 975 | 1.075 | 1.200 | 1.175 |
| Overall width (mm) | 520 | 520 | 520 | 520 | 520 | 520 |
| Fork dimensions (LxWxH, mm) | 450/150/55 | 500/160/60 | 600/150/50 | 700/150/55 | 800/160/60 | 800/160/60 |
| Fork outer distance (mm) | 520 | 520 | 520 | 520 | 520 | 520 |
| Turning radius (mm) | 730 | 820 | 840 | 965 | 1.160 | 1.030 |
| Truck weight (kg) | 41 | 67 | 46 | 52 | 63 | 68 |
| Article number | GE0022863 | GE0022864 | GE0022866 | GE0022870 | GE0022874 | GE0022878 |
| Model | DB600x685 | DB800x450 | DB800x480 | DB1000x450 | DB1000x480 | DB1150x450 | DB1150x480 |
|---|---|---|---|---|---|---|---|
| Load capacity (kg) | 2.000 | 2.000 | 2.000 | 2.000 | 2.000 | 2.000 | 2.000 |
| Tyres | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane |
| Operation | Manual | Manual | Manual | Manual | Manual | Manual | Manual |
| Lifting range (mm) | 85 - 200 | 85 - 200 | 75 - 190 | 85 - 200 | 75 - 190 | 85 - 200 | 75 - 190 |
| Lift (mm) | 115 | 115 | 115 | 115 | 115 | 115 | 115 |
| Lift per tiller stroke | ca. 15 | ca. 15 | ca. 15 | ca. 15 | ca. 14 | ca. 14 | ca. 18 |
| Load distance (mm | 300 | 520 | 520 | 720 | 720 | 860 | 860 |
| Overall length (mm | 1.000 | 1.220 | 1.175 | 1.375 | 1.375 | 1.525 | 1.525 |
| Overall width (mm | 685 | 450 | 480 | 450 | 480 | 450 | 480 |
| Fork dimensions (LxWxH, mm) | 600/160/60 | 800/160/50 | 800/150/60 | 1.000/160/60 | 1.000/150/55 | 1.150/160/60 | 1.150/150/50 |
| Fork outer distance (mm) | 685 | 450 | 480 | 450 | 480 | 450 | 480 |
| Turning radius (mm) | 860 | 980 | 950 | 1.140 | 1.140 | 1.280 | 1.280 |
| Truck weight (kg) | 67 | 62 | 50 | 65 | 55 | 60 | 59 |
| Article number | GE0022869 | GE0022875 | GE0022876 | GE0022859 | GE0022860 | GE0022861 | GE0022862 |
