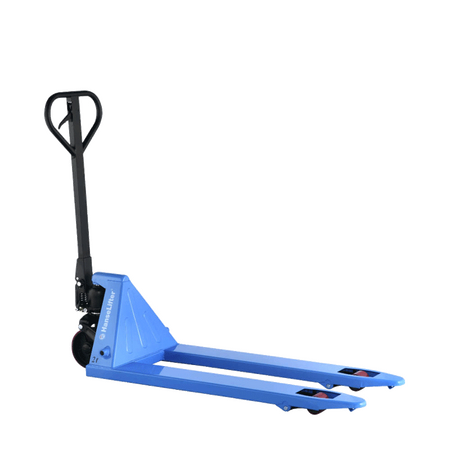

DB-E ECO pallet truck
The entry-level model
- Load capacity: 2000 kg
- Fork length: 1150 mm
- Load distance: 940 mm
- Fork outer distance: 520 mm
- Roller equipment: Polyurethane
DB-E ECO pallet truck - the ideal entry-level model
The affordable DB-E ECO pallet truck is a reasonably-priced entry-level model and is particularly suitable for occasional use in warehousing and operations. With a fork length of 1150 mm and a fork outer distance of 520 mm, its design is ideal for use with EURO pallets or pallets with euro pallet size.
Tyres and equipment
Single PU fork rollers and PU steering wheels ensure the quiet running and easy handling of the DB-E ECO pallet truck. Continuous and controlled lowering of the pallet truck is possible using the hand lever. Thanks to the practical fork markings, pallet pick-up is particularly easy.
Features and technical data
Features
- Load capacity: 2000 kg
- Max. lifting height: 190 mm
- Load distance: 940 mm
- Fork outer distance: 520 mm
- Fork markings for easy pallet pick-up
- Simple reinforced construction
- Single rollers
- Easy to use
- 210° steering angle, making it agile and easy to manoeuvre
- High-quality powder coating
- Controlled, continuous lowering at the hand lever/li>
Technical Data
| Model | DB-E |
|---|---|
| Load capacity (kg) | 2.000 |
| Tyres | Polyurethane |
| Operation | Manual |
| Lifting height (mm) | 190 |
| Minimum fork height (mm) | 75 |
| Lift (mm) | 115 |
| Lift per tiller stroke (mm) | approx. 13 |
| Load distance (mm) | 940 |
| Overall length (mm) | 1.540 |
| Overall width (mm) | 520 |
| Fork outer distance (mm) | 520 |
| Turning radius (mm) | 1.280 |
| Truck weight (kg) | 52 |
| Article number | GE0022879 |
