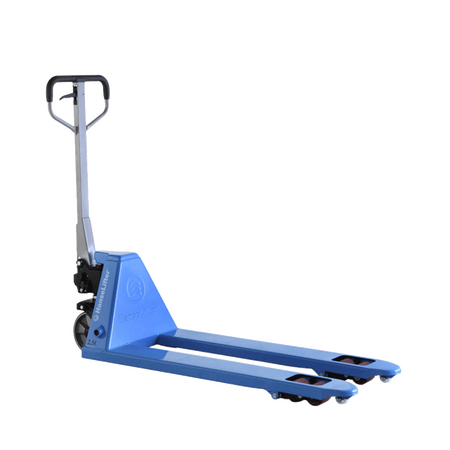

BF-SL pallet truck
Rapid lifting of pallets up to 150 kg
- Load capacity: 2500 kg
- Max. lifting height: 200 mm
- Small turning circle
- Reinforced tiller
- Tandem fork rollers
BF-SL pallet truck - rapid lifting of pallets
The BF-SL pallet truck saves important time when working with pallets. With its different fork lengths of 800, 950 and 1150 mm, it is suitable for almost any warehouse. The load capacity is 2500 kg and the other dimensions match to those of a standard pallet truck as well. As standard, the BF-SL is equipped with polyurethane rollers. These are quiet, abrasion-resistant and have strong grip.
SPEEDLift function
Unlike the standard HanseLifter pallet truck models, the BF-SL is designed with SPEEDLift, with just one stroke to reach the pallet (and the pallet is ready to be moved on the second stroke). This is achieved by the high-performance pump, which quickly lifts loads up to 150 kg and already reaches its max. lifting height of 200 mm after only three to four strokes. This makes the BF-SL pallet truck with SPEEDLift a truly fast and efficient pallet truck.
Is this not the right materials handling device for you?
Does the BF-SL pallet truck not meet your requirements? You are sure to find a suitable device in our extensive range. You can also customise your device to your requirements. Our Special Construction Department for custom-built trucks looks forward to every challenge. Use our practical callback service or contact one of our helpful advisors.
Features and technical data
- Load capacity: 2500 kg
- SPEEDLift hydraulic pump for quick lifting of pallets up to 150 kg.
- High-performance hydraulic pump pressure relief valve for a long service life
- The pallet is ready to be moved after 2x strokes
- Available in different fork lengths (800 mm, 950 mm and 1150 mm)
- Max. lifting height: 200 mm
- Load centre distance: 600 mm
- Load distance: 860 mm
- Fork outer distance: 520 mm
- Reinforced tiller and rubberised handle
- Rollenausstattung: Polyurethan (PU)
- Tandem fork rollers as standard
| Model | BF-SL |
|---|---|
| Load capacity (kg) | 2.500 |
| Tyres | Polyurethane |
| Operation | Manual |
| Lifting height (mm) | 200 |
| Minimum fork height (mm) | 85 |
| Lift (mm) | 115 |
| Load distance (mm) | 860 |
| Overall length (mm) | 1.535 |
| Overall width (mm) | 520 |
| Fork length (mm) | 800, 950, 1.150 |
| Fork dimensions (LxWxH, mm) | 1.150/160/55 |
| Fork outer distance (mm) | 520 |
| Turning radius (mm) | 1.425 |
| Truck weight depending on fork length (kg) | 65, 68, 74 |
| Article number | GE0022729 |
