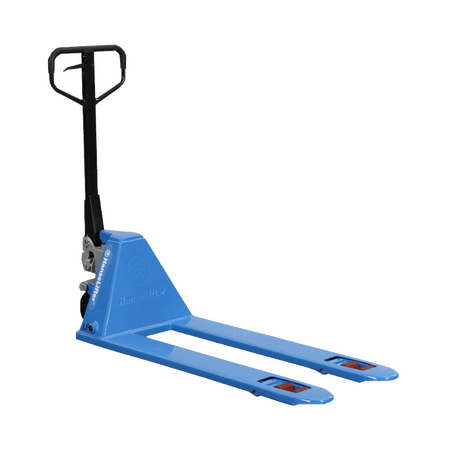

BF-L pallet truck
With lower fork height
- Load capacity: 1000 or 1500 kg
- Max. lifting height: 200 mm
- Small turning circle
- Low fork height
- Tandem rollers
BF-L pallet truck - Ideal for low pallets and displays
The BF-L low profile pallet truck is ideal for disposable pallets, displays or special pallets. Select between two load capacities and two fork heights, 35 mm or 51 mm. Thanks to the low fork heights, the BF-L low profile pallet truck can easily pick up low pallets and move them without problems. The BF-L low profile pallet truck is available in two load capacities. The BF-L1000 can lift up to 1000 kg and has a minimum fork height of 35 mm. The BF-L1500 can lift 1500 kg with a minimum fork height of 55 mm.
Roller equipment
The BF-L low profile pallet truck is equipped with polyurethane rollers (PU). These are quiet, abrasion-resistant and have an ideal grip. They can easily roll over small surface irregularities. The BF-L1000 model also provides an even lower fork height, as it has special steel fork rollers.
Alternatives
The BF-L pallet truck is also available with electric drive. The E-BF75 electric pallet truck has a low fork height of 75 mm, making it suitable for the transport of low pallets as well. The tiller head has been reduced to the essentials and as a result, the truck is easy to use, even for beginners.
Features and technical data
- Load capacity: 1000 or 1500 kg (model-dependent)
- Max. lifting height depending on model: 110 or 145 mm
- Load centre distance: 600 mm
- Load distance depending on model: 930 or 825 mm
- Fork outer distance depending on model: 520 or 540 mm
- Low fork height
- Entry height depending on model: 35 or 51 mm
- Suitable for disposable pallets and special pallets
- High-quality tandem rollers
- OPTIONAL: With food grade H1 oil
| Model | BF-L1000 | BF-L1500 |
|---|---|---|
| Load capacity (kg) | 1.000 | 1.500 |
| Tyres | Polyurethane | Polyurethane |
| Operation (mm) | Manual | Manual |
| Lifting height (mm) | 110 | 145 |
| Minimum fork height (mm) | 35 | 55 |
| Lift (mm) | 85 | 90 |
| Load distance (mm) | 930 | 825 |
| Overall length (mm) | 1.525 | 1.525 |
| Overall width (mm) | 520 | 540 |
| Fork dimensions (LxWxH, mm) | 1.150/150/30 | 1.150/160/35 |
| Fork outer distance (mm) | 520 | 540 |
| Turning radius (mm) | 1.385 | 1.425 |
| Truck weight (kg) | 84 | 88 |
| Article number | GE0022724 | GE0022726 |
