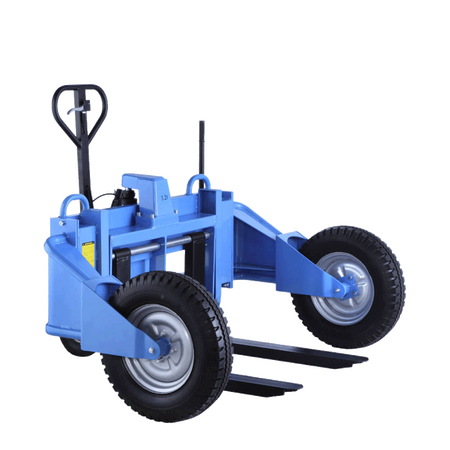

BF-GL pallet truck
for rough terrain
- Load capacity: 1200 kg
- Max. lifting height: 288 mm
- Small turning circle
- Profiled pneumatic tyres
- Adjustable fork outer distance
BF-GL pallet truck - ideal for rough tracks
The BF-GL all-terrain pallet truck is particularly suited for use on construction sites and uneven surfaces. The large pneumatic tyres of the BF-GL ensure stability and excellent handling on all uneven surfaces. Where standard pallet trucks reach their limits, the BF-GL all-terrain pallet truck comes into its own.
Features
The BF-GL all-terrain pallet truck has a load capacity of 1200 kg and a reinforced tiller. Lubricating nipples allow easy maintenance. The BF-GL has excellent manoeuvrability without as well as will a pallet, as it has a possible steering angle of 210°. As with standard pallet trucks, a hand lever is used for controlled lowering. Variably adjustable forks between 212 mm and 735 mm and a minimum fork height of 65 mm complete the equipment of the BF-GL all-terrain pallet truck.
Custom-built trucks
Does the BF-GL all-terrain pallet truck not meet your requirements? Create your own customised materials handling device together with our Special Construction Department. Avail of our practical callback service or make an appointment.
Features and technical data
- Feature: Pallet truck with profiled pneumatic tyres
- Load capacity: 1200 kg
- Profiled pneumatic tyres for outstanding handling on uneven surfaces
- Max. lifting height: 288 mm
- Load centre distance: 600 mm
- Load distance: 500 mm
- Fork outer distance adjustable: 212 - 753 mm
- At least 65 mm ground clearance with lowered forks
- Width between wheel arms 1210 mm to accommodate standard pallets
| Model | BF-GL |
|---|---|
| Load capacity (kg) | 1.200 |
| Tyres | Pneumatic tyres |
| Lifting range (mm | Manual |
| Lift (mm) | 65 - 288 |
| Load centre distance (mm) | 223 |
| Load centre distance (mm) | 600 |
| Load distance (mm) | 500 |
| Overall length (mm) | 1.330 |
| Overall width (mm) | 1.590 |
| Fork outer distance (mm) | 212 - 735 |
| Truck weight (kg) | 235 |
| Article number | GE0022718 |
