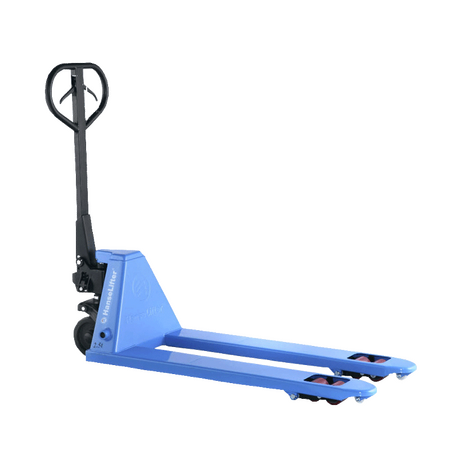

BF-BR pallet truck
With brake for inclines and ramps
- Load capacity depending on model: 3000 kg
- Fork length: 1150 mm
- Load distance: 865 mm
- Fork outer distance: 520 mm
- Tandem fork rollers made of polyurethane
BF-BR pallet truck - ideal for inclines and ramps
The BF-BR pallet truck is the ideal model for inclines and ramps. The brake of the BF-BR pallet truck, which can be continuously regulated via the hand tiller, makes it possible to individually adjust the driving speed on descending gradients. The brake lever at the handle allows you to control braking on inclines and to park the pallet truck on inclines using the locking function.
Select your load capacity
You can choose between two models with a load capacity of 2.5 t or 3.0 t. Guide rollers with rubber tyres and tandem fork rollers are included as standard in this series. In addition, the BF-BR is also equipped with entry and exit rollers, which simplify picking up pallets crossways. As regards its other features and dimensions, the BF-BR is similar to the premium BF pallet truck.
Customised trucks
Does the BF-BR pallet truck have the ideal features for your warehouse, but not the right dimensions? Our Special Construction Department can develop a suitable solution for nearly every situation. Use our convenient callback service for your request or simply contact one of our helpful sales advisors.
Features and technical data
- Feature: Equipped with practical drum brake
- Load capacity depending on model: max. 3000 kg
- Max. lifting height: 200 mm
- Load centre distance: 600 mm
- Load distance: 865 mm
- Fork outer distance: 520 mm
- Ideal for use on inclines and ramps
- Tandem fork rollers made of polyurethane
- High-quality rubber steering wheels and tandem fork rollers as standard
- Entry and exit rollers for picking up pallets crossways
- High-quality hydraulic pump with pressure relief valve for a long service life
- Controlled lowering via hand lever at the tiller
| Model | BF-BR | BF-BR3t |
|---|---|---|
| Load capacity (kg) | 2.500 | 3.000 |
| Tyres | Polyurethane/rubber | Polyurethane/rubber |
| Operation | Manual | Manual |
| Lifting height (mm) | 200 | 200 |
| Minimum fork height (mm) | 85 | 85 |
| Lift (mm) | 115 | 115 |
| Load distance (mm) | 865 | 865 |
| Overall length (mm) | 1.535 | 1.535 |
| Overall width (mm) | 525 | 525 |
| Fork dimensions (LxWxH, mm) | 1.150/160/45 | 1.150/160/60 |
| Fork outer distance (mm) | 520 | 540 |
| Turning radius (mm) | 1.425 | 1.425 |
| Truck weight (kg) | 80 | 85 |
| Article number | GE0022691 | GE0022680 |
